eGauge EG4015 Power Meter & Data Logger
$831.00
Skip to product information

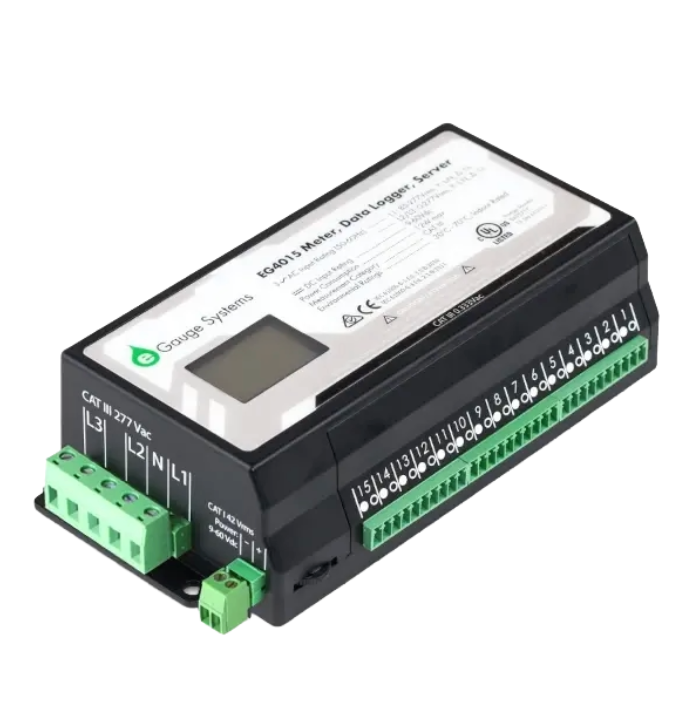

eGauge EG4015 Power Meter & Data Logger
$831.00
The eGauge EG4015 is a professional-grade power monitoring and data logging system designed for accurate energy measurement and analysis. Perfect for commercial, industrial, and residential applications requiring precise power monitoring.
Key Features
- 15 Sensor Ports - Monitor up to 15 circuits simultaneously with 6900A maximum capacity
- Advanced Voltage Monitoring - AC voltage range: 85-277 Vac (L1, L2, L3), DC voltage measurement up to ±60 Vdc
- Built-in LCD Screen - Real-time display of power consumption data
- Comprehensive Data Logging - Track V, A, W, Wh, Hz, VA, VAr, THD, and more
- Dual Connectivity - USB ports and Ethernet for flexible data access
- High Accuracy - ANSI C12.20 – 0.5% compliant for reliable measurements

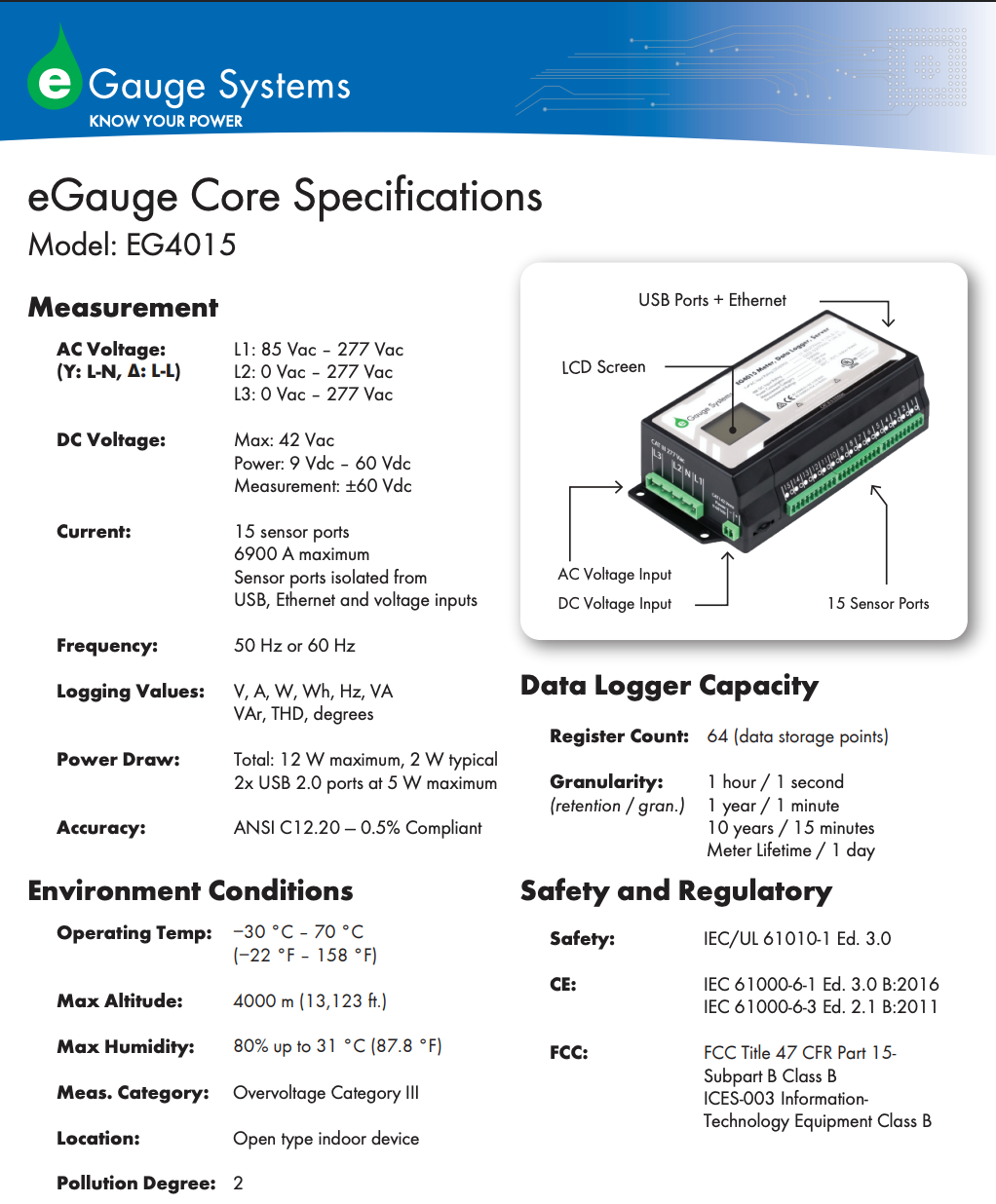

Technical Specifications
- Model: EG4015
- Frequency: 50 Hz or 60 Hz
- Power Draw: 12W maximum (2W typical), 2x USB 2.0 ports at 5W maximum
- Data Storage: 64 register count with granularity from 1 second to 10 years
- Operating Temperature: -30°C to 70°C (-22°F to 158°F)
- Installation: Open type indoor device
Safety & Compliance
Certified to meet IEC/UL 61010-1 Ed. 3.0, IEC 61000-6-1 Ed. 3.0 B:2016, IEC 61000-6-3 Ed. 2.1 B:2011, and FCC Title 47 CFR Part 15 standards.
Ideal for: Energy audits, solar monitoring, building management systems, industrial power analysis, and residential energy tracking.
